Your Go-To Source for Quality Roof Insulation Solutions
Experience excellence in every aspect of the production journey as we uphold the highest standards of craftsmanship and performance.
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
Details of PUF roofing sheet:Uncover the intricate details of PUF roof manufacturing, where innovation and reliability intertwine.
Fast To Construct
PUF roofing sheets are manufactured within our factories, streamlining the on-site installation procedure. This effortless setup not only reduces installation duration but also enhances efficiency during assembly.
Insulation – Heat Proof
Premium Rigid Polyurethane Foam (PUF) is esteemed for its effectiveness and outstanding insulation capabilities. PUF roofing sheet is dedicated to upholding superior quality and performance, leading to considerable savings in cooling and heating costs.
Strong Load Bearing
Our PUF roofing sheet is engineered to endure compressive loads of up to 1 ton per square foot, providing substantial support across extended spans, whether under live or dead weight conditions. Its durable design minimizes the need for extensive support structures, exemplifying exceptional strength and efficiency in roofing solutions.
Edge Protect Technology
Weather Shield For Ultra Long Life
We apply The Weather Shield coating to their PUF roofing sheet, incorporating an extra-thick layer of paint for increased protection against external elements. This UV-resistant coating ensures longevity and resilience, making PUF roofing sheets UV-resistant and highly durable.
Analyze the nuanced specifications outlining their design, structure, and capabilities to uncover the unmatched quality and sophistication inherent in each puf roofing sheet.
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Navigate through a comprehensive guide to PUF roofing sheet production: explore the ranges, pricing, features, and more meticulously manufactured by our team.

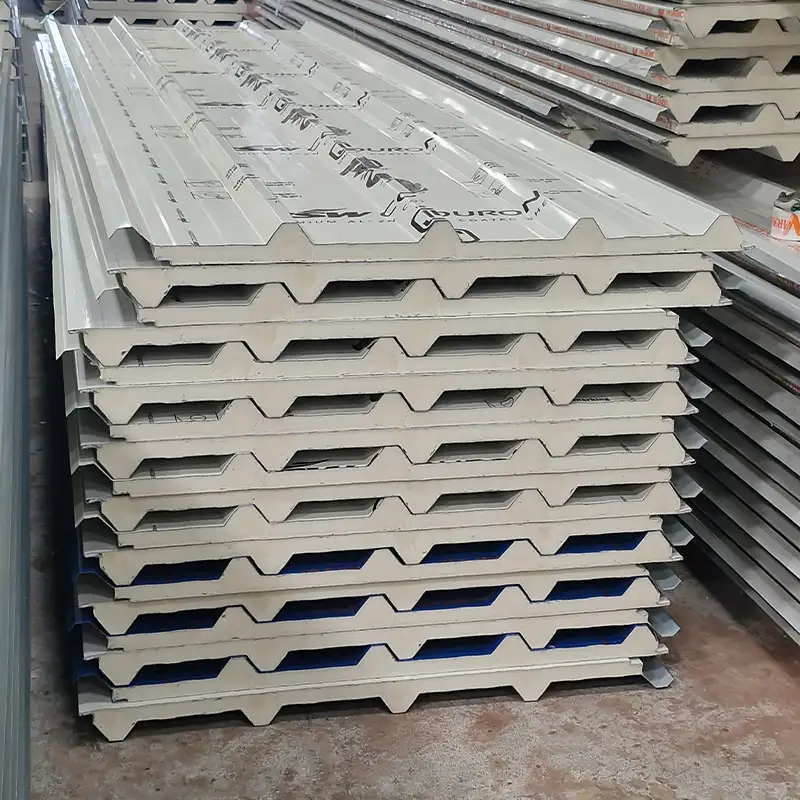

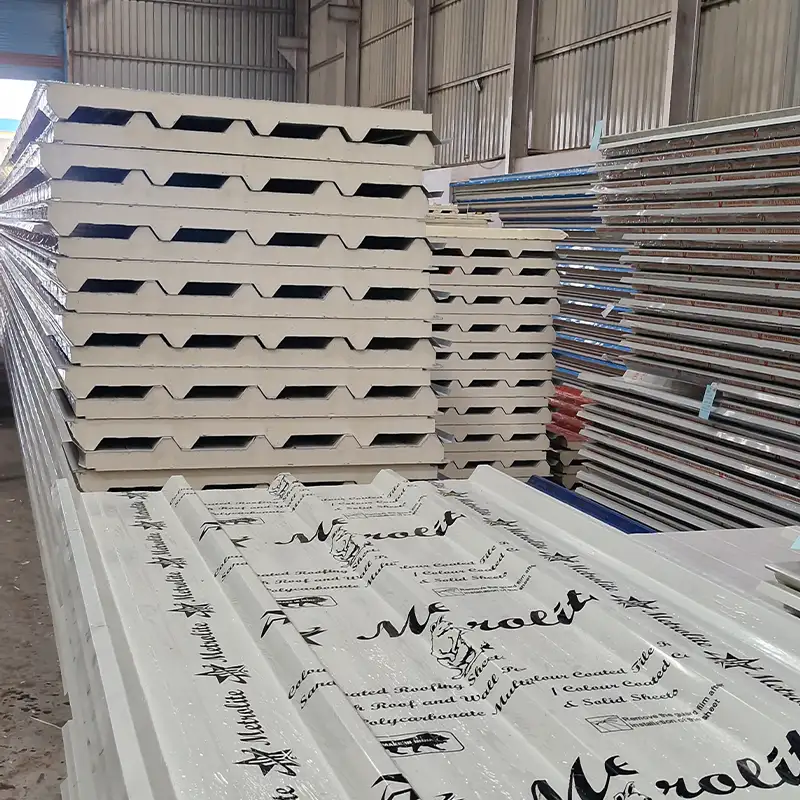

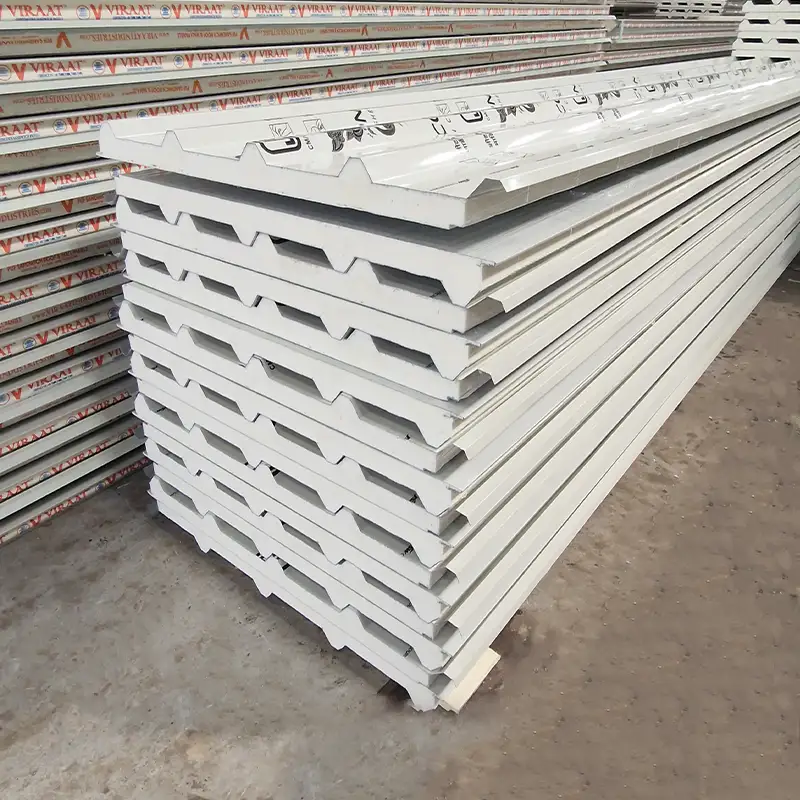

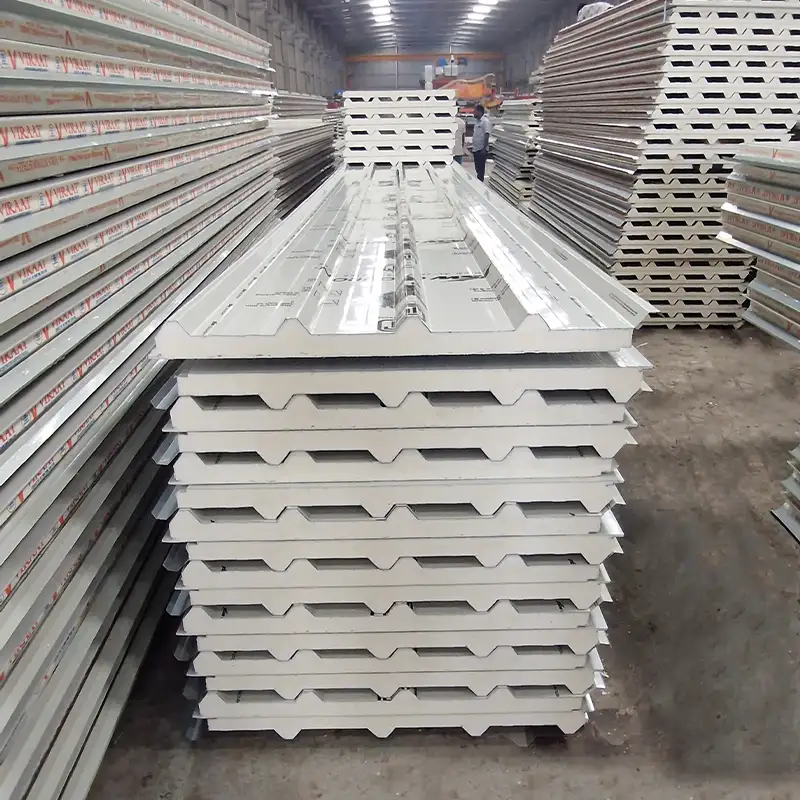

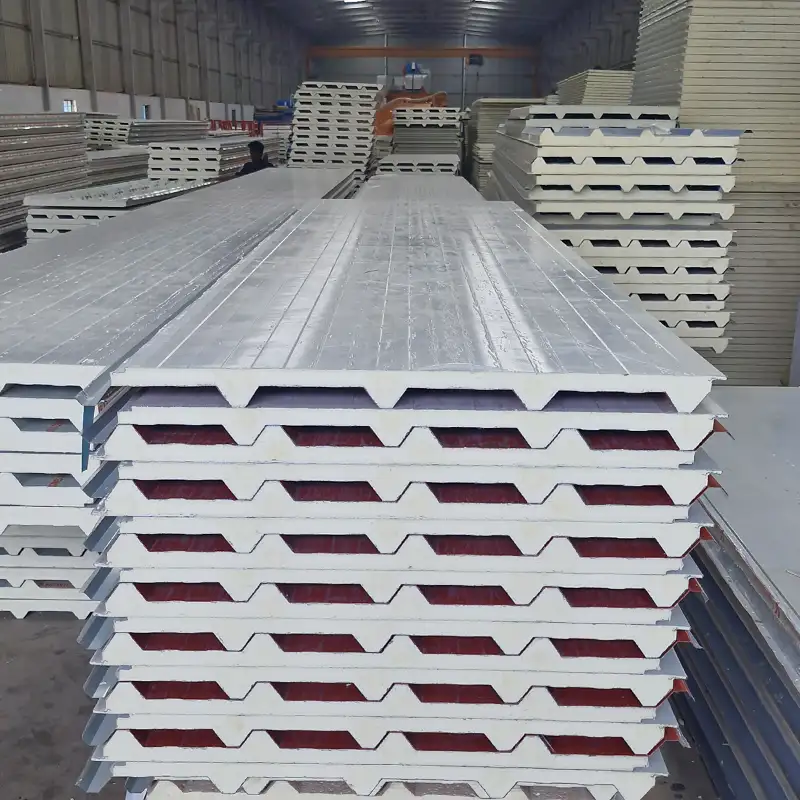

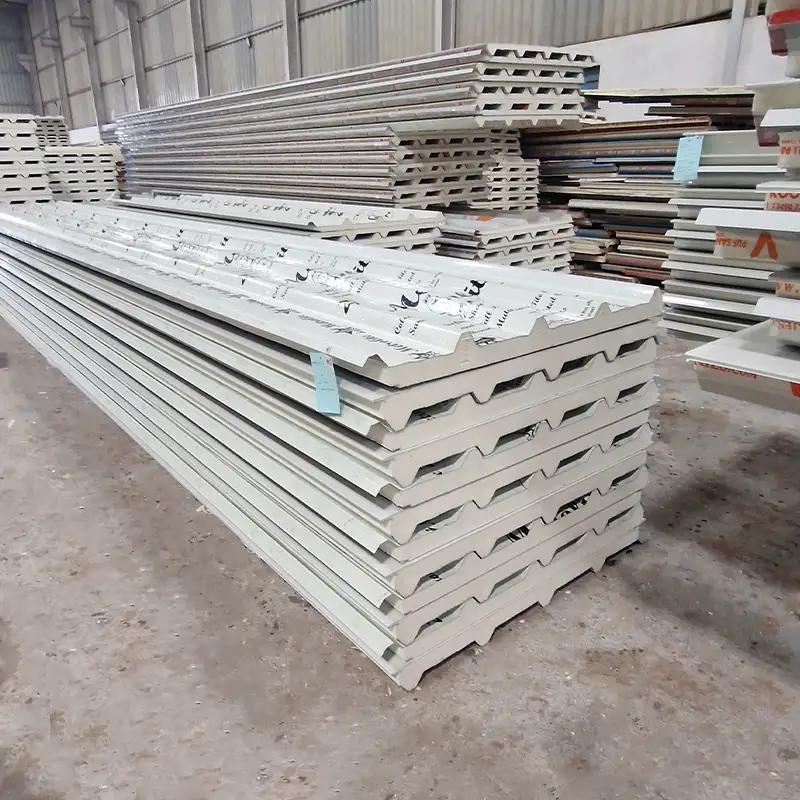

PUF Roof Sheets
Featuring a variety of finishes and colors, they effortlessly blend into any office or home design. Suitable for use in warehouses, PEB Industries, small spaces, and farmhouses, these panels offer both style and resilience. The Panel is Manufactured in a Continuous Line Production Method & compromises of 5 corrugation, 250mm Pitch with exterior baby ribs for extra strength.
Polyurethane Foam Density of 40+- 2kg/m3 with Guard Film Protection on all exposed surface & confirms to IS12346.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

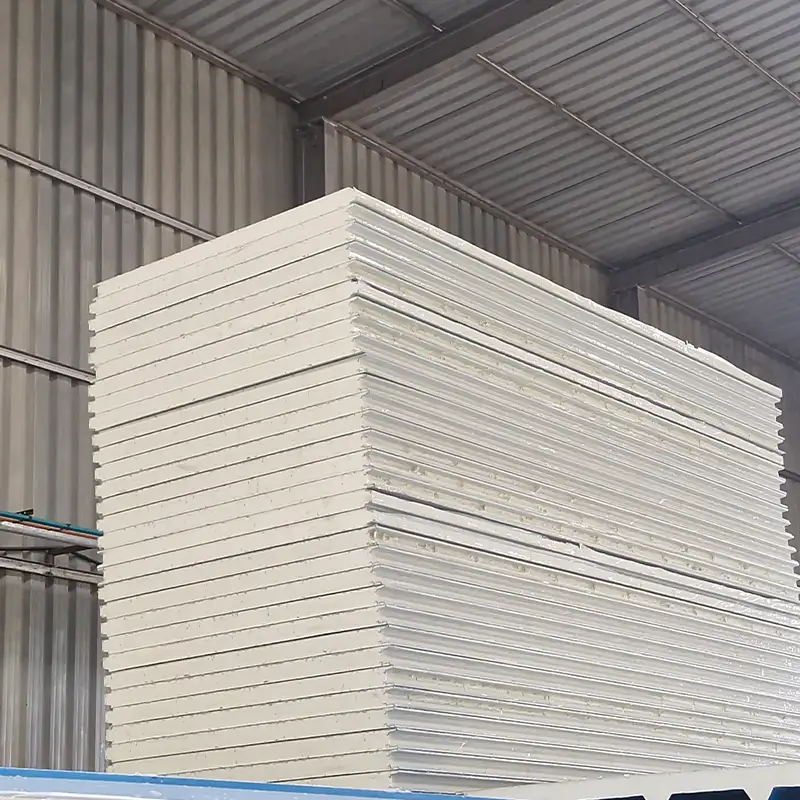

PUF Wall Sheets
Available in various dimensions and colors, the exclusive PUF insulation holds promise in significantly enhancing both exterior walls and interior partitions. Additionally, its lightweight yet sturdy design ensures ease of installation, making it a preferred choice for modern construction projects. PUF panels also provide exceptional thermal and sound insulation properties, reducing energy costs and improving overall comfort. With resistance to weathering, corrosion, and pests, these panels are ideal for long-term durability. Their versatility extends to applications in residential, commercial, and industrial spaces, offering both functional and aesthetic benefits.
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
